Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH

Name: Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH
Brand: YINGDA
Price: 1 USD

China Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH wholesale

Brand Name : YINGDA

Model Number : ADB-ST-RD

Certification : ISO,SGS

Place of Origin : china

MOQ : 100 PCS

Price : Negotiable

Payment Terms : T/T or western Union

Supply Ability : 50,000pcs per month

Delivery Time : 3 days

Packaging Details : 1 pc / bag or 10 pc/ blister box

material : Metal, Plastic

house color : black

shape : round

type : bare fiber adaptor

weight : 12g

Fiber type : single-mode

polish methold : UPC

insertion loss : <0.2dB

Contact Now

Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH

Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH

Fiber channel cable Description:

This specifications covers the optical fiber cable for laying in indoor installation.

The optical fiber meets the requirements of ETISALAT specifications No: FCS-10

Single mode optical fiber characteristic:(bare fiber)

Item	Value
Mode field diamter @1310nm	8.6±0.4μm
Cladding diameter	125±1μm
Core concentricity error	≤0.6μm
Claddding non-circularity	≤1.0%
Primary coating diameter	250±15μm
Coating-cladding concentricity error	≤12.5μm
Fiber curl radius	≥4m

Transmission characteristics: (bare fiber)

Item		Performance
Attenuation	1310nm 1550nm	≤0.40db/km ≤0.30db/km
Marco bending loss	30mm 10 tums at 1550nm	≤0.50db
Cut-off wavelength		≤1260nm
Chromatic dispersion	1310nm 1550nm	≤3.5ps/nm.km ≤18ps/nm.km
Zero dispersion wavelength		1300-1324nm
Zero dispersion slope		≤0.092ps/nm2.km

Approved by ETISALAT small bend standards

Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH

Packing & delivery

Delivery in standard lengths of 1000 meters
Customized lengths available
Protect against harsh environmental conditions

Fiber channel cable Details

Item	Value
Fiber (core)	2,1
Cable diameter (mm)	3.1*2.0
Cable weight (kg/km)	8
Fiber color	1 red; 2 green

Order information:

Fiber count:	1core, 2core, 4core ...
Fiber type:	G.657A1,G.657A2
Cable diameter:	2.0x3.1mm
Strength member:	ARP/FRP, Steel
Cable weight	8kg/km
Jacket color:	White,Black
Application:	Indoor, outdoor

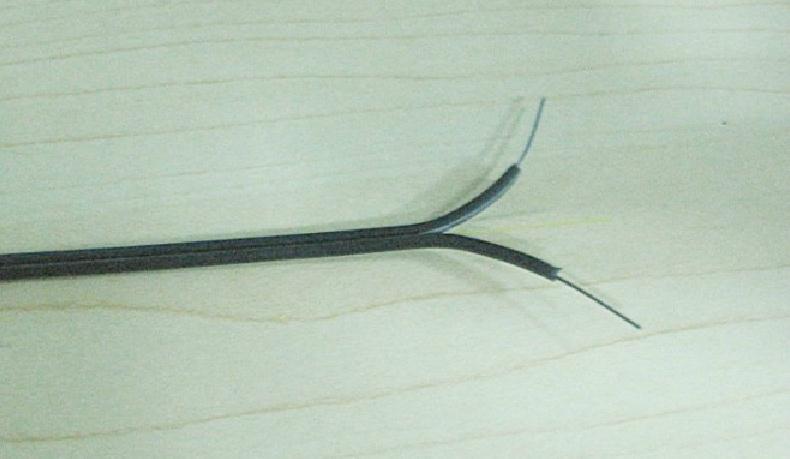

Indoor Figure -8 FTTH drop cable real photo:

White and Black color

Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH

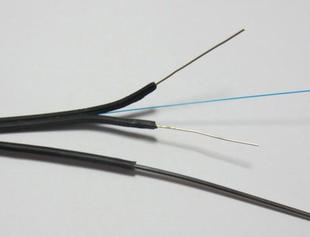

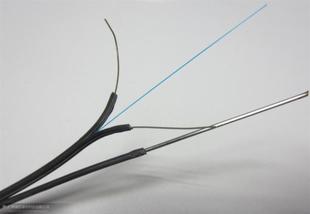

Self-supporting FTTH drop cable real photo:

Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH
