8 Ports O Plastic Fiber Optic Termination Box Mini Fusion Splice Closure With Splice Tray For FTTH Indoor
8 Port plastic terminal box is indoor use only, mainly for distribution vertical cable from FTTH patch cord to end customer. It is placed on the wall or bottom of the floor cabinet niche by screws.
Specification
| Model | FTB108C |
| Dimension (W*D*H) | 280*140*40mm |
| Max.Capacity | 24core (single fiber) |
| Cable ports | 2 in, 8 out |
| Cable diameter | In:Φ10mm |
| SC adapter qty | 8 SC simplex |
| Splice tray quantity | 1 pc 24F tray |
| Color | White |
Application
- Suitable for jointing fiber pigtail
- To protect fier optic splices and help to distribute
- It is a wall mounting or desktop type
- Mainly used in telecommunication equipment and network indoor and outdoor.
Features
Box cover and bottom is hinge connected eacy to open and close.

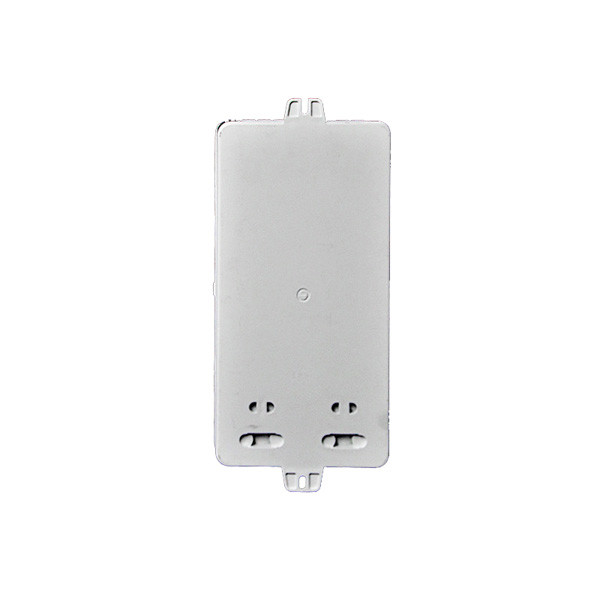

Wall mounted with screws, kits with standard accessory bag
Bottom to bring the feeder cable into the box, top for cable distribution into 8 subscribers with sc port.
High strength plastic material, non toxic and dermatologist safe.
The box can use for a minimum period of 20 years.
Splice tray with 24 cores single fiber fusion splice with cover to protect.
Accesory list table
| Name | Unit | Quantity | Remark |
| Heat shrinkable protective sleeve | Pc | Configuration as per capacity |
|
| Nylon tie | Pc | Configuration as per capacity |
|
| Labeling paper | Pc | 1 |
|
| Plastic shrinkable tube | Pc | 4 |
|
| blots | Pc | 2 |
|
| Manual | Pc | 1 |
|

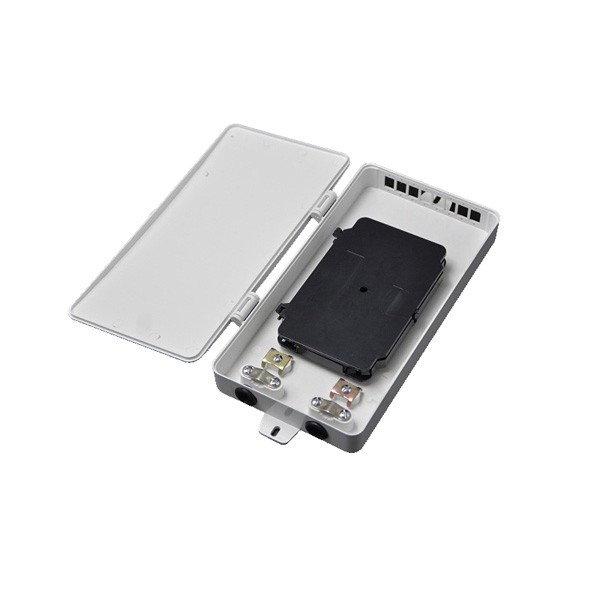

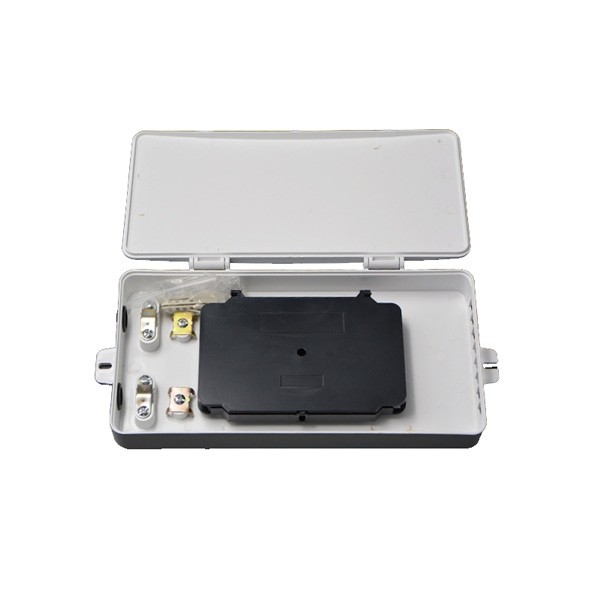

There are 2ports for cable entry, 8ports for SC simplex or LC duplex adapter. And with 1pc 24cores splice tray.

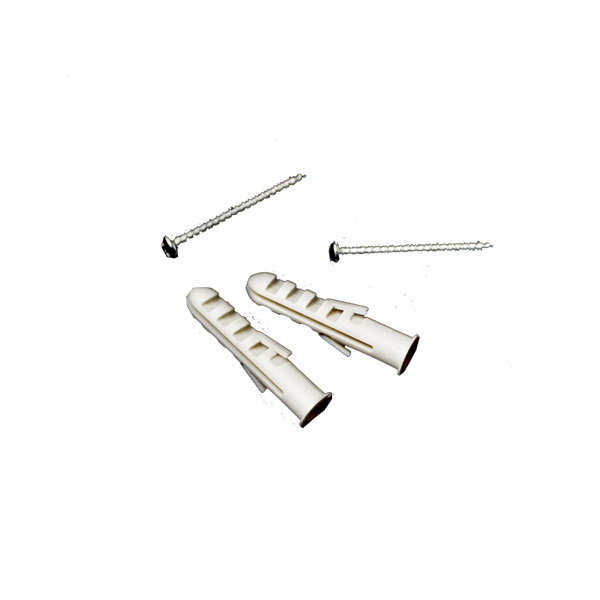

Suitable for wall mounted installation, with 2pcs expansion screw
|
|
