Single-mode Simplex Fiber Optic Adapter LC/APC, Green LC Fiber Optic Coupler

Name: Singlemode Simplex Fiber Optic Adapter LCAPC Green LC Fiber Optic Coupler
Brand: YINGDA
Price: 0.04 USD

China Single-mode Simplex Fiber Optic Adapter LC/APC, Green LC Fiber Optic Coupler wholesale

Brand Name : YINGDA

Model Number : LC/APC DX

Certification : ISO

Place of Origin : china

MOQ : 100pcs

Price : 0.04USD-2.15USD

Payment Terms : T/T, Western Union, L/C

Supply Ability : 200k per month

Delivery Time : 5-8 working days

Packaging Details : 50pcs/box

Fiber Count : Duplex

Fiber Type : Single mode

Connector Material : Plastic

Color : Green

Sleeve : Zirconia, PB

Polish Mode : APC

Operating Temperature : -40ºC to +85ºC

Flange : No flange

Metal Clip : Stainless steel

Wavelength : 1310nm, 1550nm

product name : mpo to mpo cable,mpo to lc cable, mtp optical connector,mtp cassette

Contact Now

Single-mode Simplex Fiber Optic Adapter LC/APC, Green LC Fiber Optic Coupler

LC duplex fiber optic shutter adaptors are specially designed to suit FTTH applications. The shutters are designed to prevent ingress of dust and also to prevent accidental exposure to laser. Shuttered adapter utilizes the conventional split ceramic sleeve method to align fibers and thus ensures the same precision and optical performance as the normal adapter.

YINGDA shutter adapters are available in SC simplex/duplex and LC duplex/quad designs. They are available with zirconia or phosphor bronze alignment sleeves in flange or flangeless body types. The connector color can be blue, green, gray or aqua. It is used to align and join two or more fiber-optic connection, to ensure alignment of two fiber-optic connections.

Features

Telcordia GR-326, IEC, TIA/EIA Standard compliant.
100% Optical performance inspection.
Low Insertion Loss.
RoHS Compliance.
Customized design and production.

Application

Telecommunication
CATV
Data Communications
Instrumentation
Local Area Networks

Specification

Item	Material	Remarks
Sleeve	Zirconia, PB
Housing	PC	Flammability UL94 V-0
Dust cap	PVC	Flammability UL94 V-0
Shutter	ABS	Flammability UL94 V-0
Metal Clip	Stainless steel
Optical performance	P Grade	S grade
Insertion Loss	≤0.1dB	≤0.2dB
Durability	1000 times	1000 times

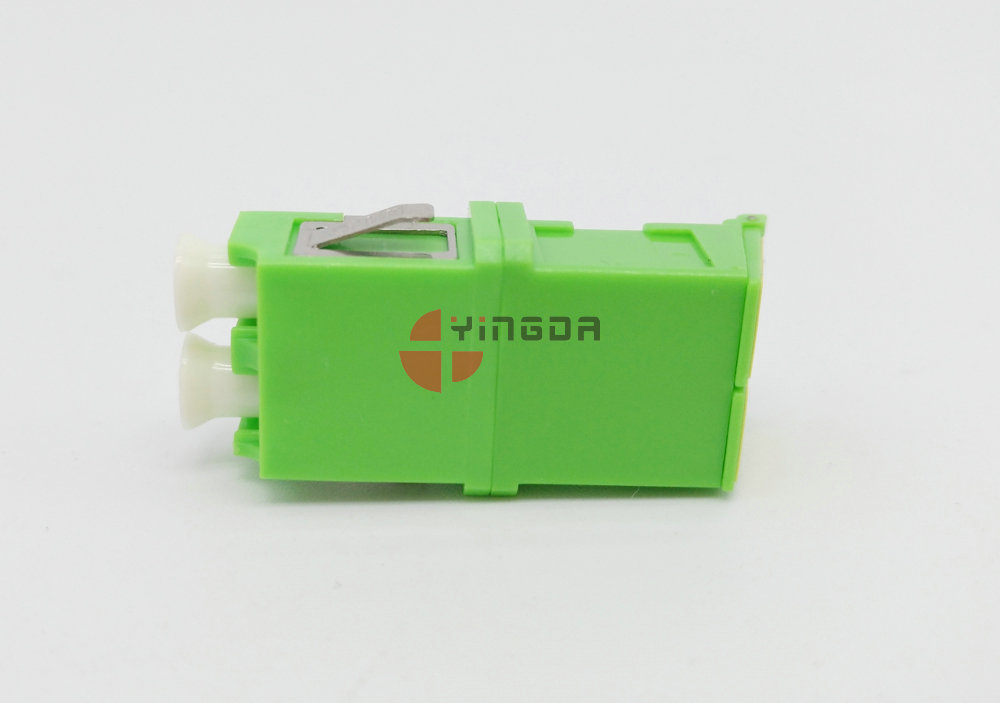

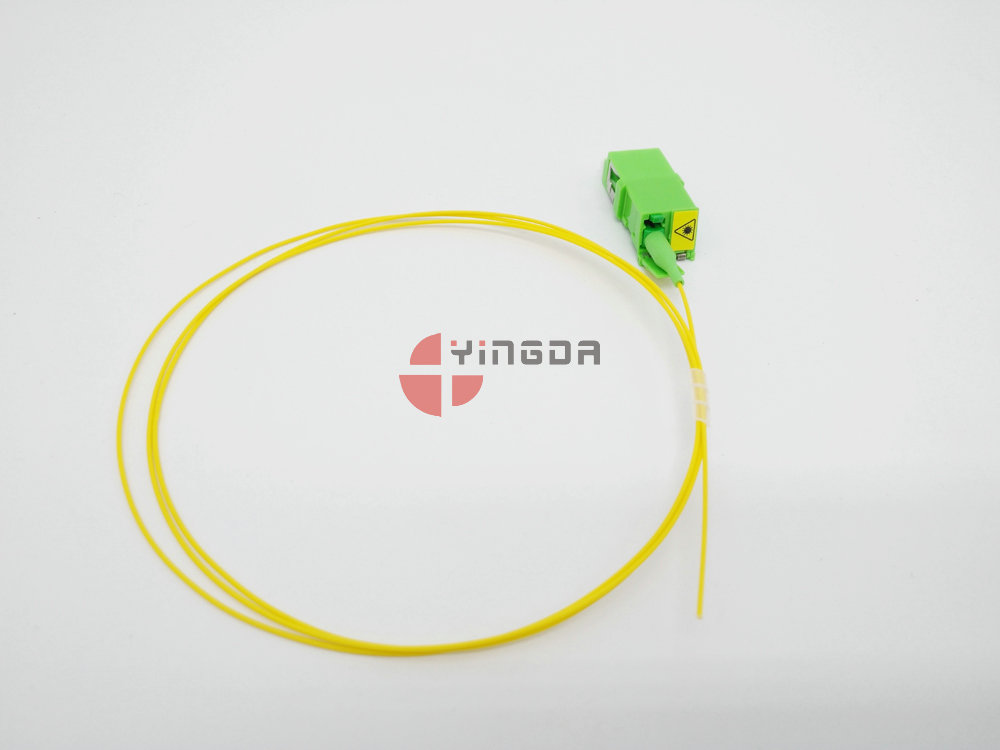

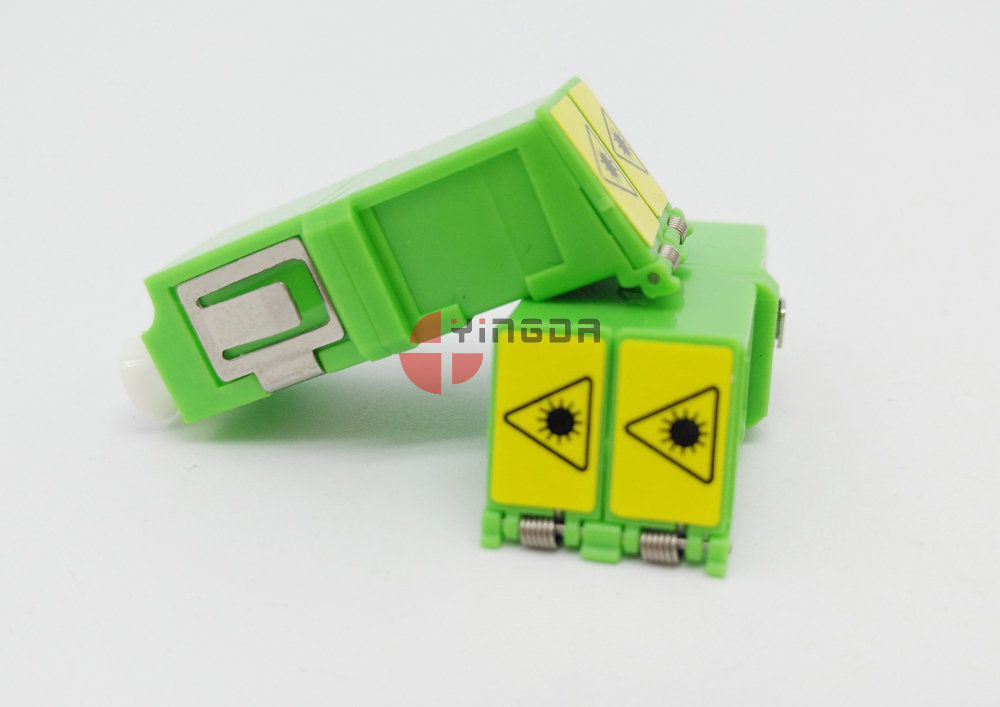

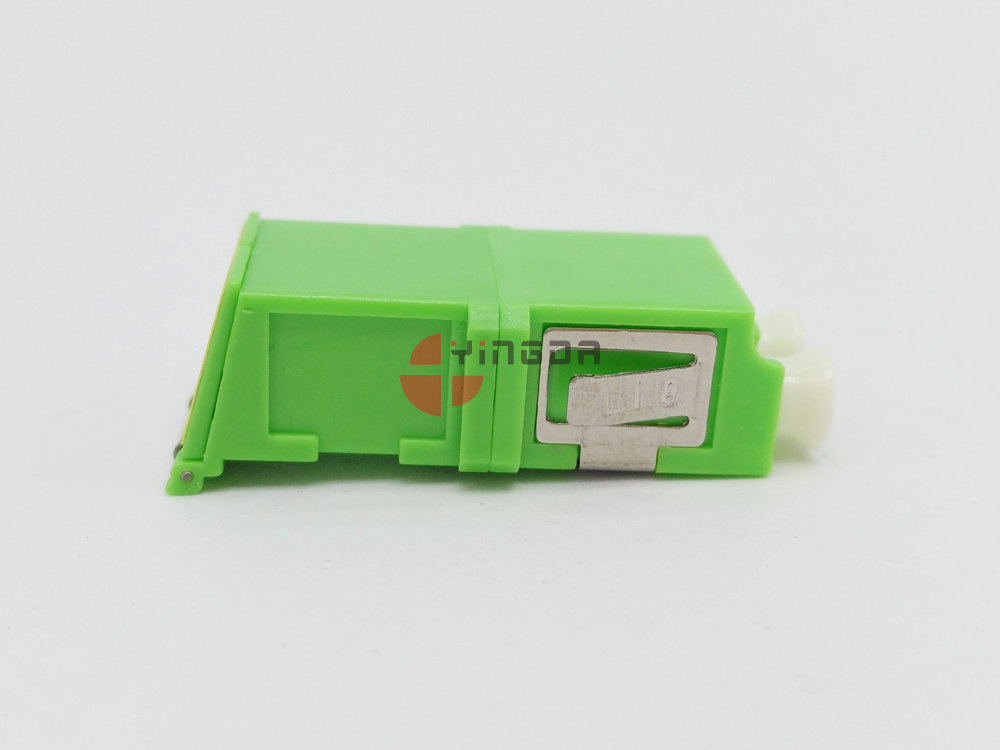

More Pictures

Single-mode Simplex Fiber Optic Adapter LC/APC, Green LC Fiber Optic Coupler

Environmental and Mechanical properties

Item	Test condition	Conformance	Test result
Vibration	10-55Hz, 1.5mm, 60min	IEC61300-2-1	≤0.2dB
Mating Durability	1000 Mating, clean every 25 mating	IEC61300-2-2	≤0.2dB
Impact	1.5m, 8 drops	IEC61300-2-6	≤0.2dB
Strength of Coupling Mechanism	40N, 10Min, L=22-28cm	IEC61300-2-12	≤0.2dB
Temperature Cycling	40ºC to +75ºC, 40 cycles	IEC61300-2-22	≤0.2dB
Temperature humidity cycling	40ºC, 95%, 96Hr	IEC61300-2-21	≤0.2dB
Operating Temperature	-40ºC to +85ºC		≤0.2dB
Storage Temperature	-40ºC to +85ºC		≤0.2dB
