CATV Simplex Fiber Optic Adapter SC / LC , Zinc Alloy UPC and APC Multiple Adapter

Name: CATV Simplex Fiber Optic Adapter SC LC Zinc Alloy UPC and APC Multiple Adapter
Brand: YINGDA
Price: 0.04 USD

China CATV Simplex Fiber Optic Adapter SC / LC , Zinc Alloy UPC and APC Multiple Adapter wholesale

Brand Name : YINGDA

Model Number : AD-LC M/SC F-SX-M

Certification : ISO,SGS

Place of Origin : china

MOQ : 100 PCS

Price : 0.04USD-2.15USD

Payment Terms : T/T or western Union

Supply Ability : 50,000pcs per month

Delivery Time : 3 days

Packaging Details : 1 pc / bag or 10 pc/ blister box

material : Metal, plastic

dust cap color : red

type : hybrid adapter

weight : 12g

Fiber type : single-mode, multimode

sleeve material : ceramic

product name : mpo to mpo cable,mpo to lc cable, mtp optical connector,mtp cassette

Contact Now

CATV Simplex Fiber Optic Adapter SC / LC , Zinc Alloy UPC and APC Multiple Adapter

Description:

Hybrid adapter can connect different types of connectors on both ends,and provides APC end

face connection. Duplex or multiple adapter can improve the density of installation, save a space.

Fiber adaptor is one kind of fiber flange. It is mainly used for interconnecting two fiber connectors.

Both UPC and APC polishing mode are available.For interconnecting various connectors, fiber

connector can be divided into 2 kinds, mating sleeve and hybrid adaptor.

Features

Low insertion loss <0.2dB
Choice of housing and sleeve materials
Stable capability and high reliability
Excellent mechanical
Choice of housing and sleeve materials
Stable capability and high reliability
Excellent mechanical capability
Variety of colors

Specification

Insertion loss	≤0.2dB
Insert-pull test	1000 times
Repeat ability	≤0.1dB
Tensile strength	≥10kg
Operating temperature	-40°C~85°C
Sleeve materials	Ceramic or Metal
Standard	Bellcore TA-NWT-001209
Storage temperature	-40°C~85°C

Application

CATV
Telecom networks
Optical test equipments
Local area networks
Wide area networks
Data processing networks

Order information

Housing Material	Sleeve Material	Channel
zinc alloy	Ceramic	Simplex
Plastic	Phosphor bronze	duplex

CATV Simplex Fiber Optic Adapter SC / LC , Zinc Alloy UPC and APC Multiple Adapter

Product Tags:

fiber optic coupler

bare fiber adapter

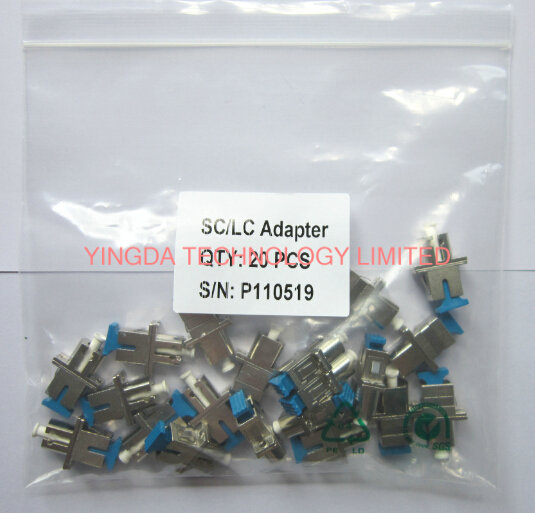

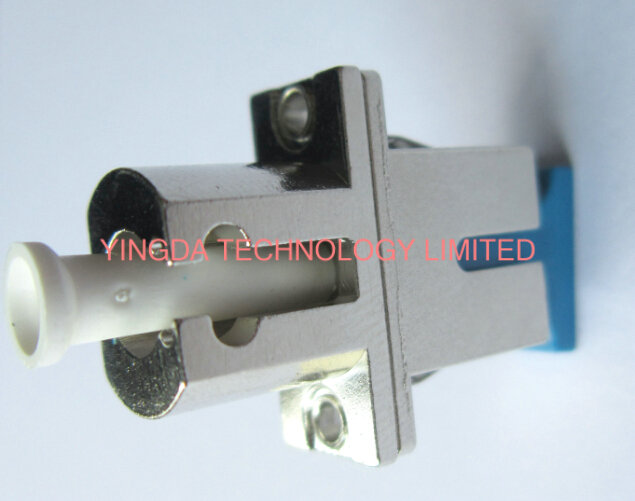

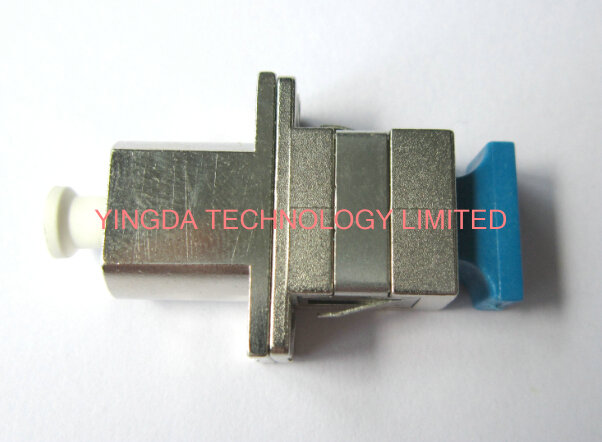

CATV Simplex Fiber Optic Adapter SC / LC , Zinc Alloy UPC and APC Multiple Adapter Images
