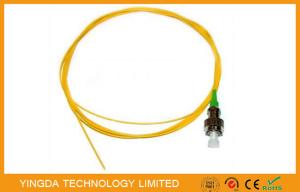

1.5M 0.9mm Yellow Fiber Optic Cable APC FC Pigtail SM Green Boot For Telecom

Name: 15M 09mm Yellow Fiber Optic Cable APC FC Pigtail SM Green Boot For Telecom
Brand: YINGDA
Price: 0.16 USD

China 1.5M 0.9mm Yellow Fiber Optic Cable APC FC Pigtail SM Green Boot For Telecom wholesale

Brand Name : YINGDA

Model Number : FPC-FCA-OS2-09-15

Certification : ISO SGS ROHS

Place of Origin : china

MOQ : 500 pcs

Price : 0.16USD-19.9USD

Payment Terms : Western Union, T/T

Supply Ability : 200,000 pcs per month

Delivery Time : 7days after payment

Packaging Details : 1 pc/ bag, 1500pcs / carton box

connector : FC/APC

fiber count : simplex 1 core

insertion loss : <0.3dB

fiber type : corning fiber SMF-28e

package : plastic bag with OEM label

cable diameter : 0.9mm

jacket : LSZH

connector color : yellow, white

temperature : -40~+80°C

customer logo : yes

product name : fiber optical pigtall，fibre optic pigtail， fo pigtall，fiber optik pigtail

Customer Logo : yes

Contact Now

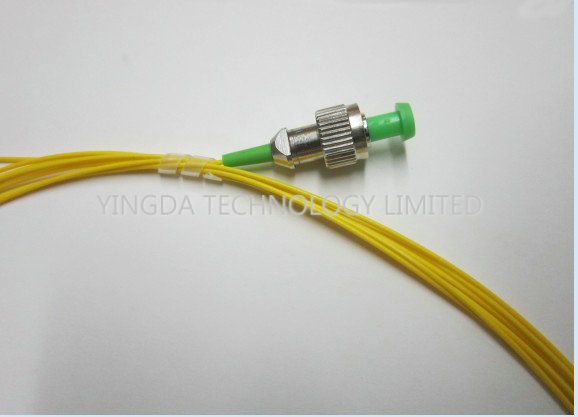

Pigtail FC/APC 1.5M 0.9mm, Yellow Fiber Optic Cable FC Pigtail SM Green Boot

Fiber Optic pigtail has connector at one end, the other end is fiber optic cable which be cut off.

Then it connect by splice with other cable core. It is widely used in fiber optic terminal box, ODF

rack , cabinet to connect with fiber optic media converter/transceivers(use coupler,patch cord too)

Features

Conforms to ANSI, Bellcore,TIA/EIA,IEC,etc International and domestic standards
Fiber transmission active connection
Low insertion loss, high return loss
Good changeability and repeatability
Mostly used inside frame connection, simple, convenient and economical
Easy to install, small size, large capacity.

Application

Medical instruments
Industry and Army use
CATV network
LAN network
Fiber Access network
Telecommunications
Gigabit Data Network test

1.Technical Data

NO.	Item	Unit	Single Mode			Multi-Mode
1	Insertion Loss	dB	≤0.2	≤0.3		≤0.3
2	Return Loss	dB	≥50/UPC	≥45/PC	≥65/APC	≥35/PC
3	Repeatability	dB	0.1
4	Working Times	Times	≥1000
5	Operating Temperature	°C	-40-85
6	Optical Cable Diameter	mm	Φ0.9	Φ2.0		Φ3.0

2. Polish Data

Item	PC Polishing		APC Polishing
Ferrule Diameter(mm)	2.5	1.25	2.5	1.25
Radius of Cury(mm)	10 ~25	7~25	5~15
Fiber Height(nm)	-100~50		±50
Apex Offset(um)	±50		±50

1.5M 0.9mm Yellow Fiber Optic Cable APC FC Pigtail SM Green Boot For Telecom
