1*8 Fiber Optical Splitter Module , Plastic Box 100×80×10mm 1.5M G657A1 LSZH 2.0mm

Name: 18 Fiber Optical Splitter Module Plastic Box 1008010mm 15M G657A1 LSZH 20mm
Brand: YINGDA
Price: 1.1 USD

China 1*8 Fiber Optical Splitter Module , Plastic Box 100×80×10mm 1.5M G657A1 LSZH 2.0mm wholesale

Brand Name : YINGDA

Model Number : YD-PLC-LG-108-FC-15

Certification : ISO SGS ROHS

Place of Origin : china

MOQ : 50 pcs

Price : 1.1USD-4.58USD

Supply Ability : 10,000 pcs per month

Delivery Time : 5-8days after payment

Packaging Details : 1PC/BOX

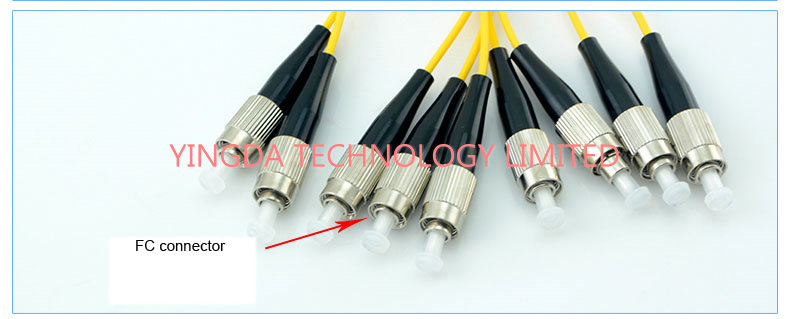

connector : FC SC LC ST all ok

fiber type2 : G657A1, G652D corning fiber SMF-28e

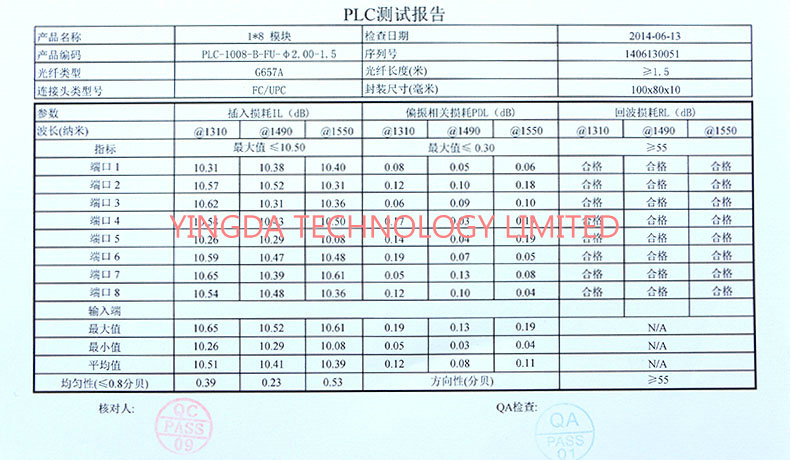

insertion loss : 10.2 / 10.5 dB

Uniformity (Max.) : 1.5 dB

wavelength : 1260 - 1650 nm

PDL(Max.) : 0.2 dB

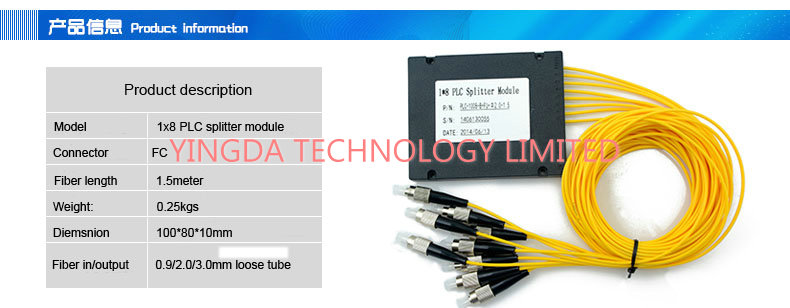

Module size : 100×80×10 mm

square tube size : 40×4×4 mm

flat tube size : 60×7×4 mm

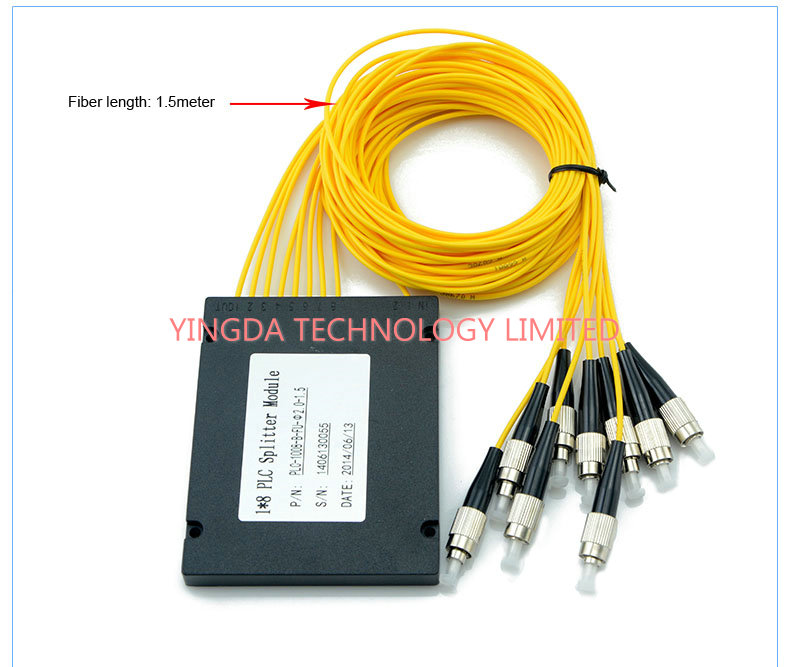

Fiber length : 1.5meter

cable diameter : 2.0mm

Contact Now

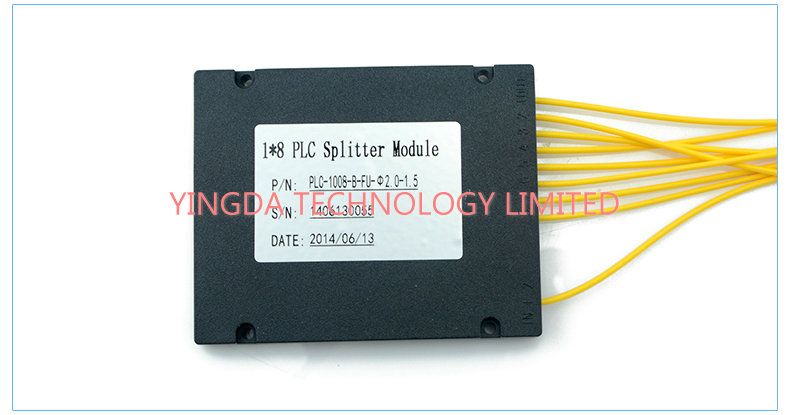

1*8 Fiber Optical Splitter Module, Plastic Box 100×80×10mm 1.5M G657A1 LSZH 2.0mm

Fiber Optic Planar lightwave circuit (PLC) splitter is a type of optical power management device
that is fabricated using silica optical waveguide technology. It features small size, high reliability,
wide operating wavelength range and good channel-to-channel uniformity, and is widely used
in PON networks to realize optical signal power splitting.

YINGDA provides whole series of 1xN and 2xN splitter products for specific applications.
All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

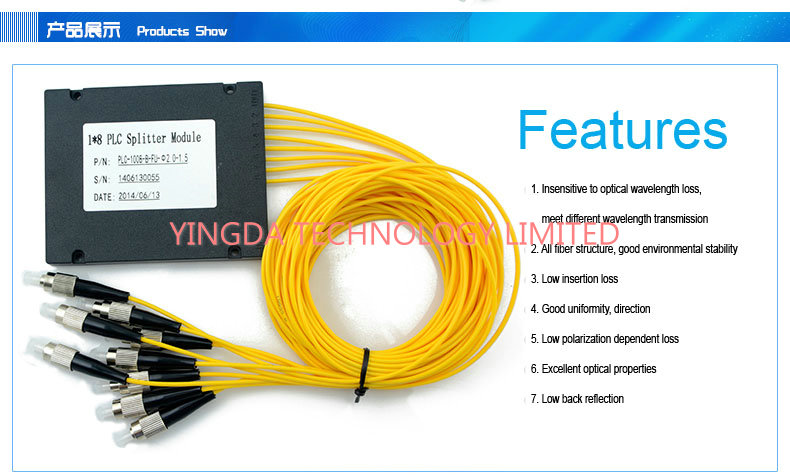

Features

Low Insertion Loss & PDL
High Isolation
Compact size
Good channel-to-channel uniformity
Wide Operating Wavelength 1260-1650nm
High Reliability and Stability

Compliance

Telcordia GR-1209-CORE
Telcordia GR-1221-CORE
RoHS

Specification

Optical Parameter		Wavelength Range: 1260~1650nm
		1X4	1X8	1x16	1X32	1x64		2X4		2X8	2x16		2X32
Isolation Loss(dB)	With Connector (Max)	7.7	11.5	14.5	18.2	20.4		8		11.6	15.1		18.2
	Without Connector (Max)	7.5	11.3	14.3	18.0	20		7.8		11.4	14.9		18
Uniformity (dB)	With Connector (Max)	0.8	1.0	1.4	1.9	2.7		1.5		1.5	2.0		2.5
	Without Connector (Max)	0.6	0.8	1.2	1.7	2.5		1.7		1.7	2.2		2.7
PDL(dB)	With Connector (Max)	0.3						0.2		0.4	0.4		0.4
	Without Connector (Max)	0.2	0.3	0.3	0.3		0.3	0.4
Return Loss(dB)	With Connector (Mix)	UPC: 45, APC: 50
	Without Connector (Mix)	50
Directivity (dB)	Min.	55
Package Size	(LxWxH mm)	4x4x50		4x7x50			4x12x60		4x5x50			4x8x50
Operation Temperature (°C)		-40~+85
Length of Pigtail(m)		According to customer’s requirement
Type of Pigtail(mm)		0.9,2 or according to customer’s requirement
Type of Connector		FC, SC or according to customer’s requirement

Table 2 – 2×N PLC Splitter

Parameters	2×2	2×4	2×8	2×16	2×32
Operating Wavelength (nm)	1260~1650
Fiber Type	SMF-28e or customer specified
Insertion Loss (dB) (S/P Grade)	4.2	7.6	11.0	14.5	17.5
Loss Uniformity (dB)	0.8	1.5	1.5	2.0	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/55
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.4	0.4
Directivity (dB)	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.5	0.5	0.5	0.5
Temperature Stability (-40~85 °C)(dB)	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
Module Dimension (mm) (L×W×H)	100×80×10	100×80×10	120×80×18	140×115×18	140×115×18

Notes

Specified without connectors.
Add an additional 0.2dB loss per connector.
1x64,1x128,2x64 also can be offered

.Application

FTTH
PON Network
CATV Links
Communication Equipment
