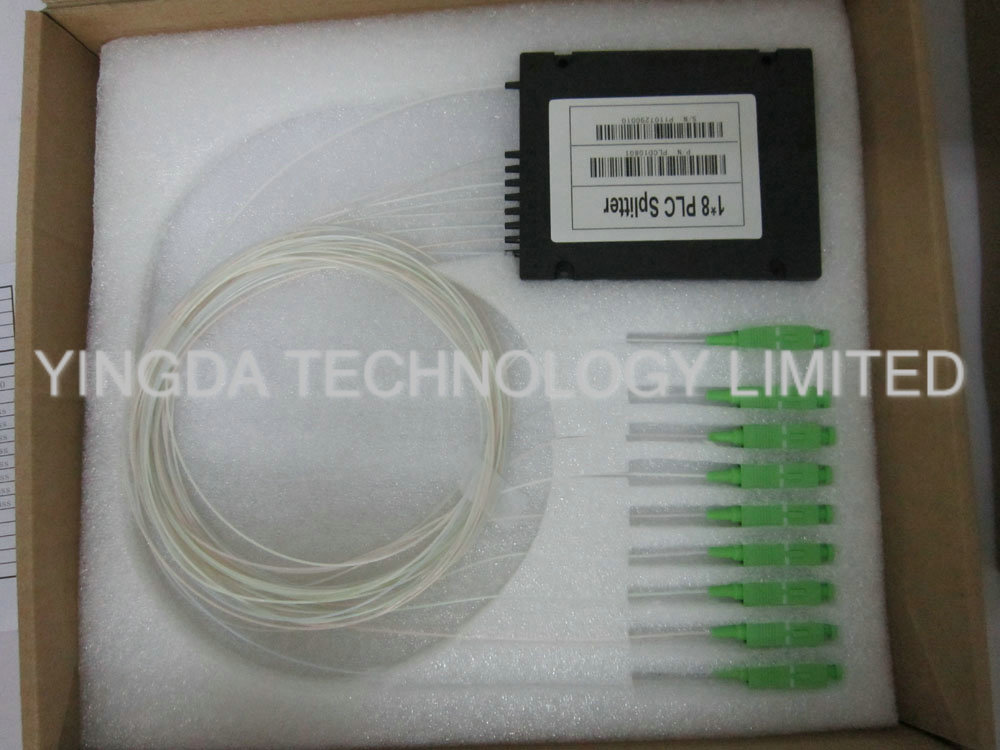

1X8 Fiber Optic PLC Splitter Module Abs Plastic For Fttx Network / Optical Signal Distribution

Name: 1X8 Fiber Optic PLC Splitter Module Abs Plastic For Fttx Network Optical Signal Distribution
Brand: YINGDA
Price: 1.1 USD

China 1X8 Fiber Optic PLC Splitter Module Abs Plastic For Fttx Network / Optical Signal Distribution wholesale

Brand Name : YINGDA

Model Number : 1X8 splitter module

Certification : ISO SGS ROHS

Place of Origin : china

MOQ : 100 pcs

Price : 1.1USD-4.58USD

Supply Ability : 10,000 pcs per month

Delivery Time : 5-8days after payment

Packaging Details : 1pc/ box,5pcs/carton box

split ratio : 1X8

connector : FC/UPC

fiber type : single mode G657A1

insertion loss : 10.2dB

Uniformity (Max.) : 0.8dB

wavelength : 1260 - 1650 nm

PDL(Max.) : 0.2dB

Module size : 100*80*10mm

Contact Now

1:8 Fiber Optic Plc Splitter Module, Abs Plastic Splitter Module Type For Fttx Network

Features

Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
High Reliability and Stability

Application

FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution

Specification

Split ratio	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Operating Wavelength (nm)	1260-1620nm
Fiber Type	G657A1 or customer specified
Insertion Loss (dB) P Grade	3.8	7.1	10.2	13.5	16.5	20.5	23.8
Insertion Loss (dB) S Grade	4	7.3	10.5	13.7	16.9	21	24.2
Loss Uniformity(dB)	0.4	0.6	0.8	1.2	1.5	2	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35	0.4
Return Loss (dB)	55
Directivity (dB)	55
Wavelength Dependent	0.3	0.3	0.3	0.5	0.5	0.5	0.5
Loss(dB)
Temperature Stability (-40- +85℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Operating Temperature	-40- +85℃
Storage Temperature	-40- +85℃

Pack information:

ABS plastic box size:100*80*10mm
1PC / carton box
100% test report

Split ratio

1x2

1x4

1x8

1x16

1x32

1x64

1x128

Plastic box

Module

Dimension(mm)

100*80*10

120*80*18

140*115*18

1X8 Fiber Optic PLC Splitter Module Abs Plastic For Fttx Network / Optical Signal Distribution
